• Mong Duong 2 Thermal Power Plant

    Investor:
    AES-VCM (USA)
    Location:
    Mong Duong Town, Quang Ninh Province, Vietnam
    Completion time:
    2015
    Project Scale:

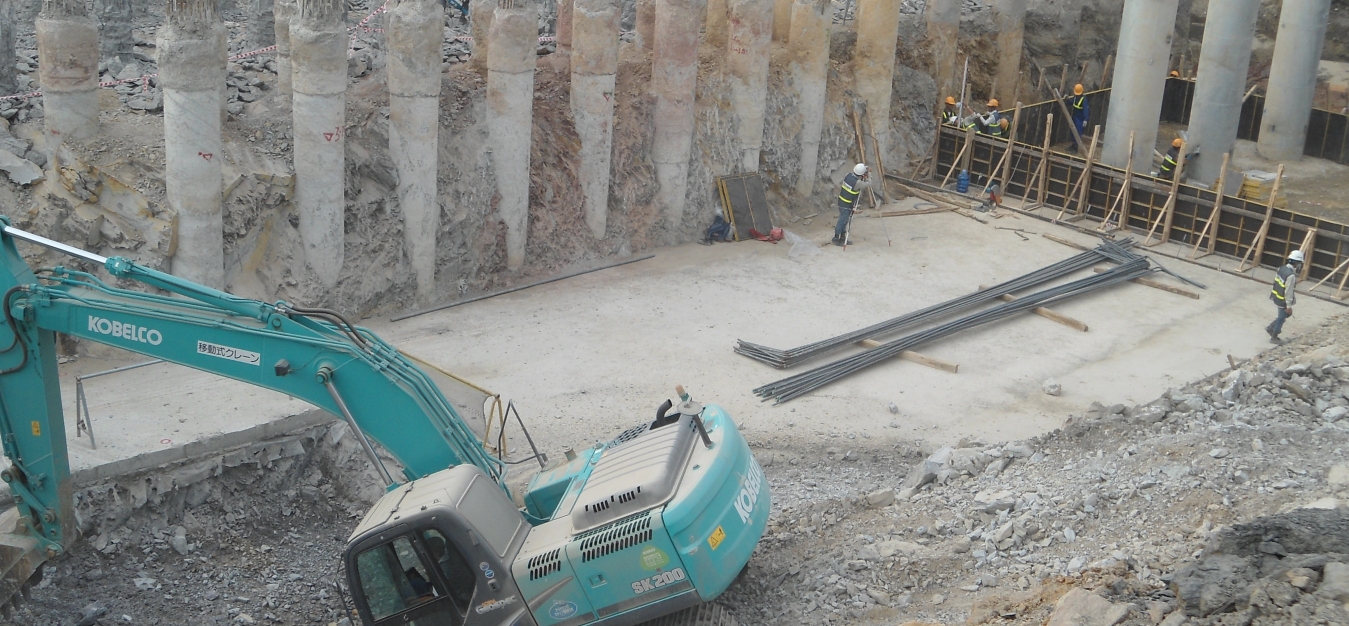

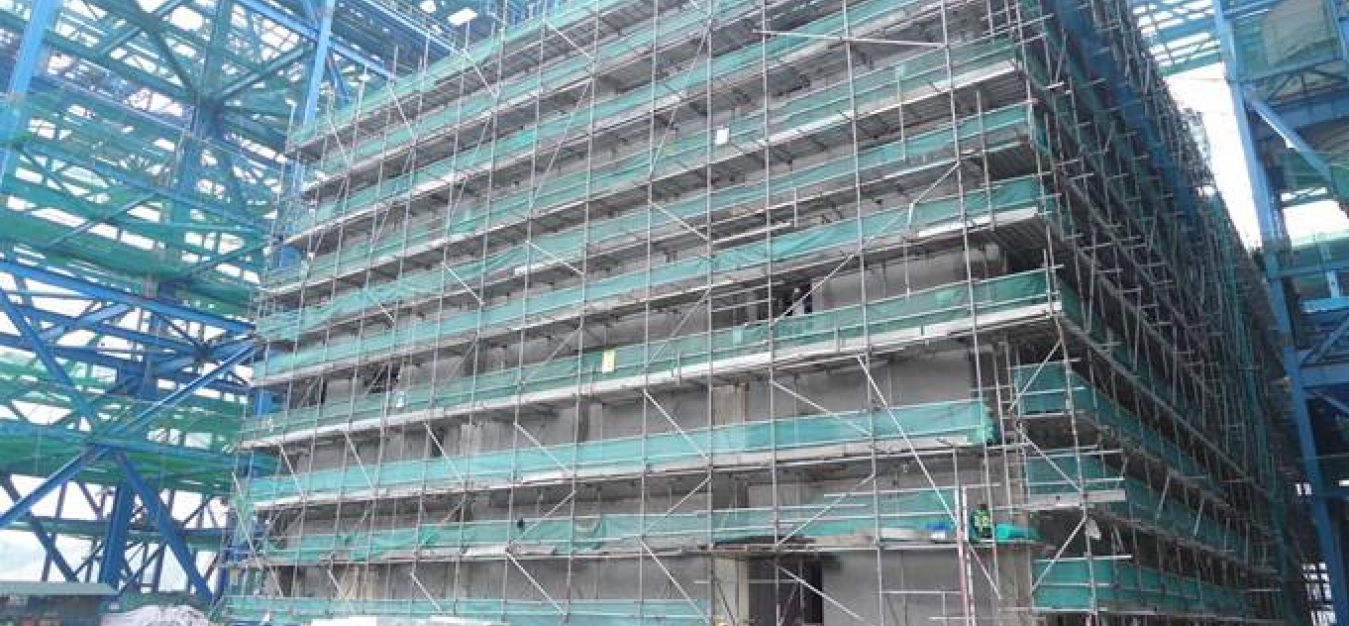

    -Steam Turbine Generator for Units 1 & 2: oFoundations on piles and on rock bed across 10,000m2 footprint area oTurbine Generator 3.0m thick mass concrete base, 15m high reinforced concrete columns - Cooling Water (CW) Seal Pit, Discharge Pit & Discharge Culvert (5,000m3 RC) Cooling Water Intake Pump Station o Continuous bored pile retaining wall with 3 No. layers of ground anchor ties o Cement deep mixing waterproofing & deep well dewatering system o 13m deep excavation in poor soil & reinforced concrete pump station -Central Control Building (7 Story) -Additional works including: Administration Building, CW Intake Pipeline (earthworks), CW discharge channel, FGD Local Control, Absorber Recirculation Pump Shelter, Limestone Preparation, Gypsum Dewatering, Coal Handling Electrical & Control House, Fire Water Pump, Coal Storage Shed buildings, Hypochlorite Generation & Electrical Building for At CW Intake Structure, Motorcycle/ Bike Parking Shelter, Ash Handling Electrical & Control House and Ash Disposal Pump Shelter, bunker bays, ESP, PA/FD/ID, pipe rack structures foundation, limestone handling systems

Project Update

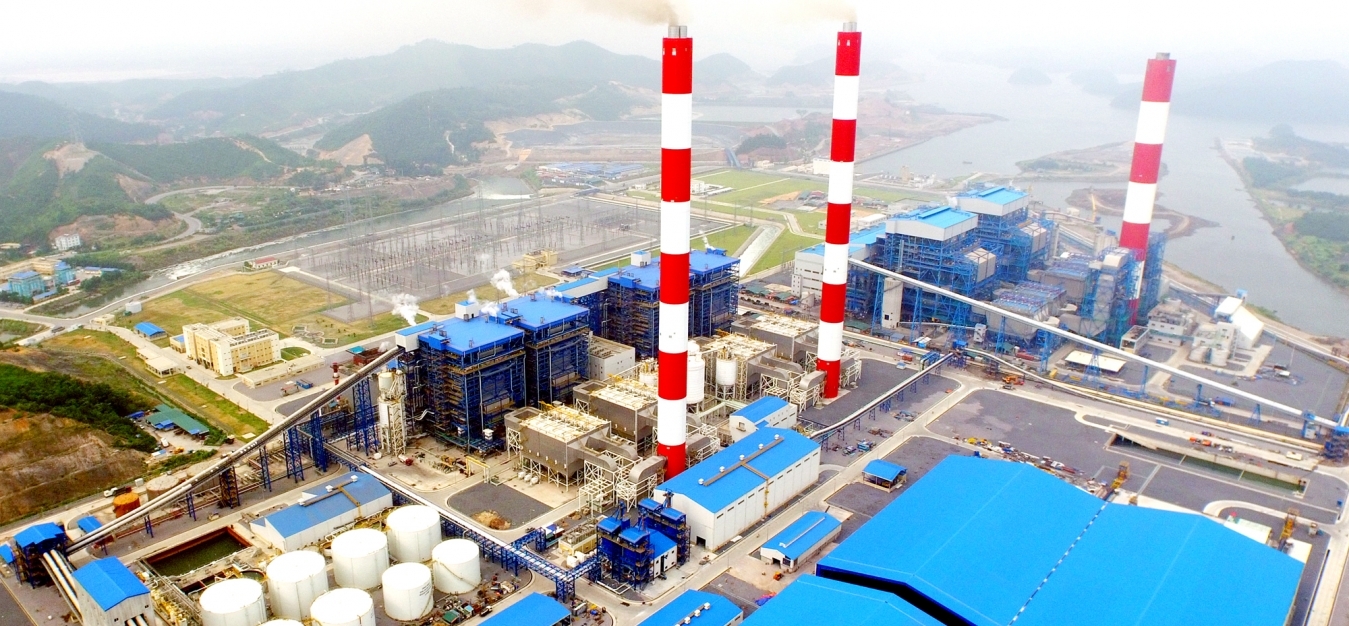

The coal-fired plant is constructed following the BOT model with capacity of 1,120 MW and is the largest private sector power project in Vietnam. MD2 CFPP was constructed under the strict safety standard of AES-VCM. Lideco 3 was DOOSAN’s contractor of choice for critical civil works.
